Contents:
Greetings ---- Installing eParts ---- Using eParts ---- Modifying eParts  ---- Relocating a Catalog ---- Reporting Problems

Most eParts have been created as Multi-View Blocks (MvBlocks) consisting of Model, Plan and Mask components.  Elevation Views are derived from the Model.  Masks are for Plan use only and have been created by using a custom AecPolygon Style with a masking effect that can be turned on or off at any time.  Some MvBlocks have a higher level of detail under the High Detail than the Low Detail.

Some eParts, like Street Lights, have also been configured to repeat at intervals that you can control by working with the custom Curtain Wall Styles.

Most of the Door Styles in this eParts product have been created by using custom Door/Window Assembly Styles as Blocks that replace the default Door Panel in Door Styles.  Though this is a little complicated, it offers a new level of flexibility in the look and design of Door Panels.

Tool	Download Executable File
d11.0_setup.exe	Right-click over link to the left and use the "Save Target As..." menu option.  Save to your desktop or other location.  Run the executable installation file.  Launch AutoCAD Architecture and Add your new Content Catalog.
Keyboard	Windows Key + E

STEP 1:

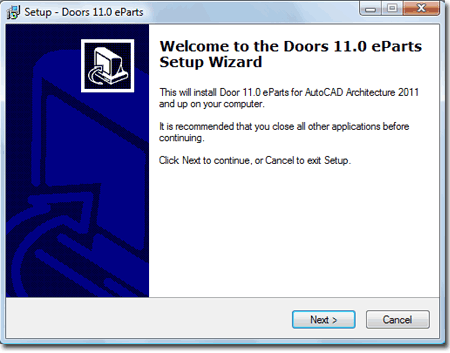

After you have downloaded the "d11.0_setup.exe" file to your Desktop or other location, double pick on it, input your password and launch the setup wizard.  Go to Step 2.

Note:
This kit was designed to be installed under the "C:\Program Files" folder and will not work properly if installed under other folders (see Customizing Installation Paths for other options).  After installation, you should find that you have a New folder called "ARCHIdigm" and within this folder is the "Doors 2011 eParts" folder containing all of the Style and Mvblock files that you will be able to access with your Content Browser.  There is also an "Images" folder that contains all of the Tool Icons.

Note:  The Password is located in your confirmation e-mail sent out after purchase.  If you did not receive this e-mail, it may have been blocked by a spam filter.  Contact info@archidigm.com to get a copy.

The password for your product is located in your purchase confirmation e-mail under the heading, "keycode".  Use this password to complete the installation.

Menu	Window> Content Browser
Keyboard	ContentBrowser or Ctrl + 4

STEP 2:
When you have completed the "STEP 1" as outlined above, use the Content Brower in AutoCAD Architecture to "Add an existing catalog or web site".  Use the Browse button on the Add Catalog dialog box to access the "C:\Program Files\ARCHIdigm\Doors 2011 eParts" folder and look for the "Doors 11.0 eParts - by ARCHIdigm.atc" file as illustrated to the right.

Once you have Opened the catalog file, you should find that you have a new Catalog Library with a Graphic Image that you can Select to access all of the Tools and Tool Palettes discussed below.

Menu	Window> Tool Paletes
Keyboard	ToolPalettes or Ctrl + 3
Links	Downloading new content from website and Adding Tools

STEP 3:
Inside the Doors 11.0 eParts Catalog Library you should find a couple of Categories and several Palettes; within the Categories are more Palettes.  You can drag the entire Palette to your current Tool Palette or you can drag individual Tools to your own custom Tool Palette to create a unique collection.

Tip:  You can use the Ctrl+A keystroke technique to highlight all tool icons under a Catalog Category or you can Select off in a corner and use the Selection Window to highlight a group.  The Shift and Ctrl keys work to assist in Selecting items just as they do in Explorer.

There are two Door Types in this package: Door Objects and Door/Window Assembly Objects.  Adding both Door Types is just like adding native ACA Objects.  The Door Objects are based on standard ACA Styles but with a variety of modifications like hardware and trim.  Included with this package are Door Styles that come straight from the stock ACA library and should behave just like stock content (trim and hardware has been added).  The Door/Window Assembly (DWA) Objects were designed to provide solutions for entry systems with sidelights and transom windows.

The two main features of the Doors in this package are trim, hardware and custom panels.  For the most part everything else will work like native ACA Objects.  The more you know about how to work with ACA Objects, the more you will be able to modify the Doors in this package.  I have placed all of the customized objects in the core library file to make it easier to make personal adjustments or even build entirely new Door designs.

Note:
For arched top doors, see Door/Window Assembly Objects.

When you add a regular Door Object, not a DWA, you should find that it behaves much like regular ACA Door Objects.  However, there are some significant and important differences that you need to know about if you wish to make changes to the results you get.  The Trim, for example sits on the outside of any Wall you Anchor to by virtue of the "Auto-adjust to Width of Wall" Door Style setting.  The Trim is also controlled by custom Structural Member Styles, an Inside and an Outside one, that use custom "MemberShape" profiles.  For many of the Door Styles, the Panel itself is actually a Block that replaces the default Panel component with a highly customized DWA Object Style that includes things like stiles, rails and so forth.  And finally, there are knobs, levers, pull-handles and more that have been added as Blocks.

All of the the custom Trim Blocks have been added as Display Representation Style Overrides.  These Blocks have only been added to the Display Representations that we believe are essential thus leaving the other Display Representations stock.  For Elevation, Model and Model High Detail all trim related Blocks have been added; including many that are turned Off by default.  For Plan and Plan High Detail only the left and right side (or jamb) Blocks have been attached for the inside and outside faces.

Because the Trim Blocks are actually Structural Members, you can alter the appearance, such as Color and Linetype, of the trim globally or individually.  To make individual changes, use the Display Properties of the Door Style as illustrated to the right.  To make global changes, use the "MemberStyle" command and modify the Display Properties of the trim Object (see comments below for more information).

Video

Standard and Complex Rectangular Door Styles have been configured with numerous trim components to allow for a variety of trim configurations.  You will find these Display Components under the "Elevation", "Model" and "Model High Detail" Display Representations.

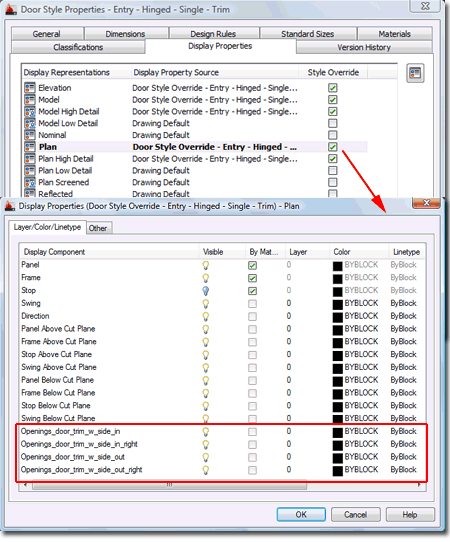

In the illustration to the right I show how turning these Display Components On or Off can have a dramatic effect on how the door looks.  Top Corners come with duplicate components: one that wraps the corner and one that runs straight out beyond the adjacent trim.  Other components include, four grille configurations, a default muntin layout and a keystone.

When you reconfigure your door trim, remember to repeat the On/Off settings for each of the three Display Representations.

Under the "Doors - Tools" Category there is a Palette named, "Doors - Trim Profiles, Hardware, Etc." that contains tools for importing trim Profiles for Wood, Stucco and Masonry Door Styles.

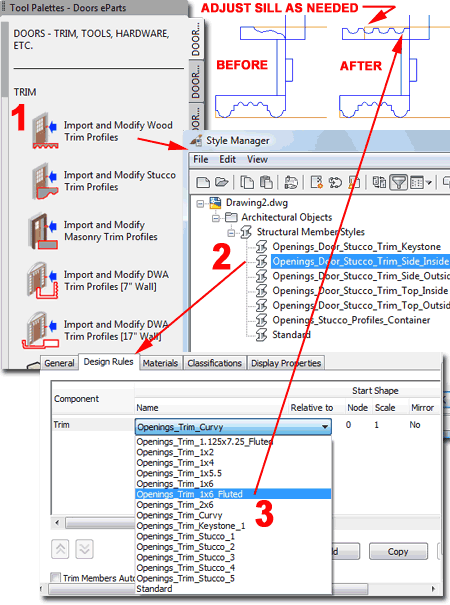

In the illustration to the right I show that I have use the "Import and Modify Wood Trim Profiles" button to import a set of predefined Member Shapes.  The button has automatically launched the "MemberStyle" window because this is where you set the imported profile.  In step 2, illustrated to the right, I show that I have opened the "Openings_Door_Stucco_Trim_Side_Inside" Member Style and gone to the "Design Rules" tab to set a new Profile name (see drop-down list in step 3).

These steps should be repeated for the Top Member Style in order to maintain consistency in the trim for the Elevation and other 3D Views.

Profiles under the "Wood" and "Stucco" Door Styles can be used on either Door Style and many can be used for the interior trim on the "Masonry" Door Styles.

Creating custom profiles is a simple process - see Creating Custom Trim Shapes for Door and Window Objects below.

Palette	DOORS - TRIM PROFILES, HARDWARE, ETC.
	Import and Modify Trim Profile
Keyboard	After importing more shapes, use "MemberShape" command

Door Styles labeled with "Trim" as a suffix in their Style names, use Structural Member Styles for inside and outside Trim.  The trim is actually comprised of a series of Blocks of Columns attached to the outside edges of the Door Frames.  By using this technique, you can easily change the shape of the Trim by using the "MemberStyle" command to access the dialog box illustrated to the right.

On the "Doors - Trim Profiles, Hardware, Etc." Palette, you will find buttons labeled "Import and Modify Trim Profile" and when you pick on these buttons, they will insert a collection of predefined Member Shapes (see discussion below).  Once the custom Member Shapes have been imported into your drawing, you can use the "MemberStyle" command to access the Trim Styles and change the shapes under the "Design Rules" tab, "Name" drop-down list, to other trim shape names.

Note:
Doors with Trim have been divided into trim groups.  Any profile change you make to trim within one trim group, such as "stucco", will affect all doors styles belonging to that trim group.  Should you need to have a unique trim for any single Door Object, you can use a Door from another trim group, such as "wood", and simply apply stucco profiles to it.  You can also Import that Door Style into a Blank ACA Template drawing, Rename the Door Style, Rename the Structural Member Styles (to something like "Openings_Door_Stucco_2_Trim_Side_Outside") and then use the "Rename" command to rename each of the trim Blocks.  When done, import the modified Door Object into the working file.

Door Styles in this product have a total of eight top corner Blocks: for each of the four corners there is one that runs "straight" and one that wraps at 90 degrees.  The wrapping top corner Blocks have been set as the default corners.  These Blocks are comprised of two separate Structural Members that meet at 45 degrees and use the "Side" Member Profile.

The corner trim was designed to accept Profiles for things like flutes.  However, should you want to create a unique corner trim solution, you can replace or substitute your own design for our default one.  Each corner has a unique Block name based on the door type (wood = w, stucco = s and masonry = m) and the position (in = inside, out = outside, default is left but right = right).  For example, "Openings_door_trim_ s_top_corner_out", is a top outside left corner Block for the Stucco Door Style.

Illustrated to the left is a top corner outside straight Block with a return component.  To increase or decrease the length of this component, see "Modifying the Straight Corner Blocks" below.  These Blocks are set to use the "Top" Member Profile.

In the illustration to the right I show three example Trim Profile Shapes that were created with Polylines.  To create your own shape, simply draw a closed Polyline form, to scale, and use the "MemberShape" command to activate the dialog illustrated to the right.

The Structural Member Shape Definitions dialog shows three Display Representations under the Shape Geometry category.  Use the "Specify Rings for ..." button to Select your custom Polyline shape for each Display Representation.  For advanced users, you can actually specify different Polyline shapes for different Display Representations.

The insertion point for your custom Polyline shape is always the upper right corner, as illustrated, and the outside face is always along the x-axis pointing towards the negative "Y" direction.

The Door Styles that were designed for masonry trim, typically brick, are the most difficult to work with because you can't rely on the "Auto-Adjust to Width of Wall" feature.

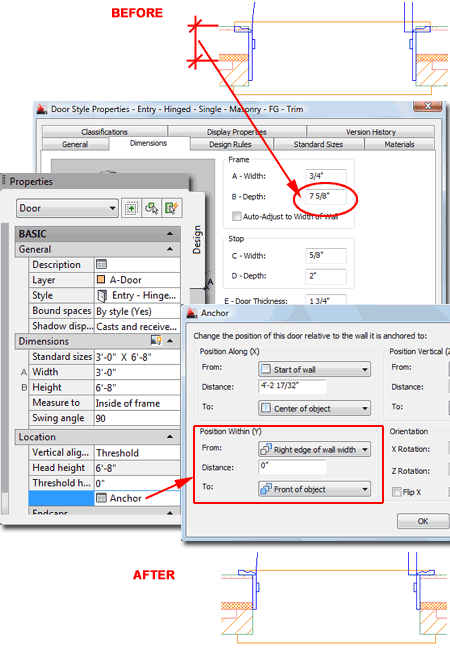

In the illustration to the right I show that I have added a door with masonry trim to an out of the box brick wall from AutoCAD Architecture's library.  The first thing you will need to do is set the Door Style's Depth value to match the depth of the Wall from the brick to the inside face (see illustration).  The frame will act as the casing.

The next step is to use the Anchor dialog box, accessed from the Door Properties Palette.  On the Anchor dialog, set the Position Within (Y) values as "From: Right edge of wall width", "Distance: 0" and "To: Front of object".  This adjustment should push the inside trim to the inside face of the finished material on the wall as illustrated to the right.  If this doesn't add up correctly, you may need to adjust the Depth value on the Door Style Properties dialog or use a "Distance" value on the Anchor dialog.

The door styles that were designed for use in masonry walls or other deep walls with unique trim requirements for the exterior, were designed with brick as the default trim option.  However, this option has been turned off by default.

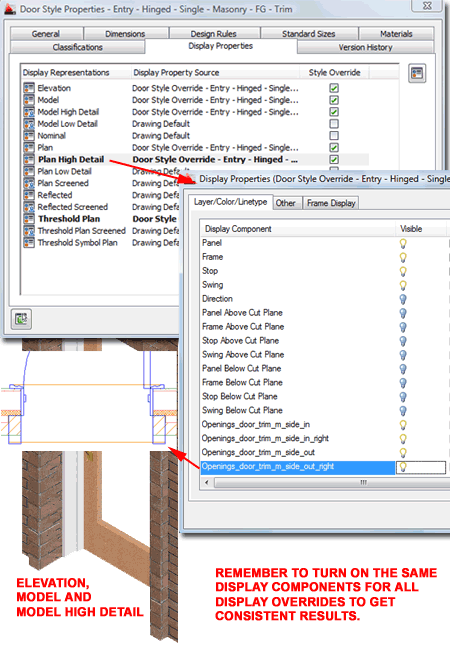

In the illustration to the right I show how you turn on the default Brick trim.  For any Masonry Door Style, use the Door Style Properties to access the Display Properties tab.  Under the Display Properties tab, select the current Display Representation and look for the "Openings_door_trim_m_...out" Display Components (those ending with the "out" suffix).  For the two Plan Display Representations, Plan and Plan High Detail, these will be easy to find and turn On (there are only two).

You will need to repeat the steps of turning on the custom Display Components for Elevation, Model and Model High Detail Display Representations.  For these, you will find more trim components because I have configured options for 3D use.  Top corner conditions have duplicate options for perfect corners and straight components so do not turn on all of the corner components as they will conflict with each other.

In the illustration to the right I show a scenario in which a the bricks, in plan, wrap the exterior door opening.  In most cases, you would use an Opening Endcap Style for placed on the Wall Object or Style.  However, as an alternative and as general information that you may want to employ whenever it seems appropriate, you can use a Wall Interference Condition and Add the Door Object as a Subtractive Object.

The trim blocks attached to the exterior side of the masonry style doors are very similar to the blocks used on the wood and stucco window styles.  However, in order to provide solutions more appropriate for masonry conditions, the Blocks were set to the outside face of the surrounding Frame Component.

All of the "Straight" Corner Blocks have been adjusted to a width of 3 1/2" to match the width of a common brick.

You can modify any and all of the trim blocks but the only ones you are likely to modify regularly are the ones designed for straight corners.  There are duplicate corner blocks: the non-straight ones simply wrap to produce a 90 degree corner while the straight ones run straight beyond the side trim and wrap inward towards the wall.

In the illustration to the right I show that I have inserted the four outside straight corner trim blocks for the stucco door style.  These have the following names: "Openings_door_trim_s_top_corner_out_straight" "Openings_door_trim_s_top_corner_out_straight_right"

In the lower right illustration I show that I have use Refedit to go inside one of the sill blocks where I have the structural member grips that allow me to Stretch the trim to make it longer or shorter.

Palette	DOORS - NON-RECTANGULAR
	Entry - Hinged - Single - Trim - Arched
Palette	DOORS - MANUAL TRIM
	Insert Interior Sides and Arched Top Trim
Keyboard

It is unfortunate that the way Blocks can be set to match a Door's Width and Height does not include a Door's shape.  In other words, it was only possible to provide automated trim on rectangular Door shapes so for all non-rectangular shapes, we created Blocks for manual placement and adjustment.  In addition, we created a set of Door Styles for non-rectangular shapes.

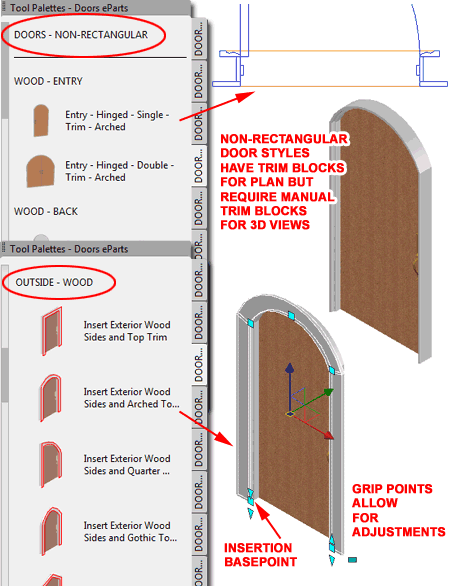

In the illustration to the right I show that I have gone to the "Doors - Non-rectangular" Palette and added the "Entry - Hinged - Single - Trim - Arched" Door Style.  In Plan View this Door Style will appear as complete as the rectangular version, however, in a Model View, you will find that the side and top trim components are missing.

Under the "Doors - Tools" Category I went to the "DOORS - MANUAL TRIM" Palette and inserted an exterior trim Block to match the Door shape.  For most of these predefined trim shape Blocks, the insertion point is the inside bottom edge of the left jamb.  Once inserted, the trim can be modified using the Structural Member Grips.

Once you have the Exterior Trim placed and sized to fit your Door, use the "Mirror" command to make a copy of it for the inside trim.  I prefer to mirror in Plan View through the Midpoint of the Jamb.

After you have the Mirrored trim, Select it and then go to the Style drop-down list on the Properties Palette to set an "Inside" trim style.

Note:
Because Manual Trim Blocks are inserted as Blocks, they will not Key to a Layer so you will need to set them to whatever Layer you feel is appropriate.

Palette	DOORS - MANUAL TRIM
	Anchor Trim to Door or Window Object
Keyboard	Anchor, Object

At the bottom of the DOORS - MANUAL TRIM palette is a Tool for Anchoring Objects, like the trim, to Doors.  This will keep the trim connected to the Door Object if you move it.  However, it does not change the trim size or shape so if you make those types of changes to your non-rectangular door, you will have to modify the trim to match.

You can Anchor other items in the same way.

Palette	DOORS - MANUAL TRIM
	Insert Rowlock Brick Arch (3.5x8x2.25)
Keyboard

By far, creating solutions for masonry trim was the most difficult challenge in this whole product and admittedly the least complete.  Bricks for example, are not extruded forms that follow a shape in one contiguous form.  Hatch Patterns don't exist that can radiate as a brick through an arch.  Render Materials have to be customized to individual forms.

For Non-Rectangular Masonry Door Styles that don't have curves, we created a set of Blocks using Member Styles where Render Materials and Hatch Patterns follow the angle.

For Non-Rectangular Masonry Door Styles that do have curves, we created customized Member Styles that attempt to work like real bricks.  By having a Block repeat along a Member Object, each brick and mortar joint is represented realistically without Hatch Patterns.  This solution, however, can prove problematic in some situations and may not work at all; corners where arched tops meet sides, for example.

Illustrated to the left I show what typically happens when you attempt to modify the arch on the Arched Brick Trim with Sides Styles.  In fact, system hang-ups can also occur so be sure to save before trying to work with these styles.

Palette	DOORS - MANUAL TRIM
	Insert Exterior Wood Top Trim with Returns
Keyboard

In order to provide a complete Trim solution, we included a set of Interior and Exterior Trim Blocks that can be used for any Door (like the stock content).  These are based on the Blocks embedded in the Rectangular Doors.

Though this package is primarily based on complex door panels, there are numerous Door Styles based on simple Profile Definition Styles.  The use of Profiles is consistent with the stock Door Styles that come with ACA.

In the illustration to the right I show a simple glazed entry door with muntins (2x4).  Because the native Muntin Block, inside the Display Properties of Door Styles, always maintains scalar proportions this is a superior solution to using a Block replacement for the Panel.  For cases such as this one, we chose to use Profiles but in cases where we wanted more sophisticated paneling, we chose to use Door/Window Assembly Styles as Door Panel replacements (see below).

The default Door Panel Component of Door Styles has very limited options for higher levels of detail so this Component has been turned off and replaced with a custom Door/Window Assembly Style.  Essentially, it works like this:

1) a custom DWA style was created to represent a Door Panel.

2) the custom DWA was drawn to a specific size and turned into a Block.

3) a Door Style was created where the default Panel Component was replaced with the Block from #2 above.

This means that if you want to modify the Door Panel, you can insert the Block for that Panel and "Refedit" (Edit the Block in Place)  it or go straight to the Door/Window Style dialog and work through it.  To change the Materials, for example, it would much better to go to the Door/Window Style.

In the illustration to the right I show how the names of these components have been structured to help find matches.

In the illustration to the right I show how the default Door Panel Component is replaced with the DWA Style Block.  Under the Display Properties, the Door Panel Display Component has been turned Off but in its place, is a custom Block added under the "Other" tab.

Note:
Notice that the trim components are also added as Blocks here.  You can use the Remove button to remove the trim or you can use the Layer/Color/Linetype tab to turn the trim off for one or more Display Representations.

Palette	DOORS - MANUAL TRIM
	Insert Trim and Anchor Trim
Keyboard

Trim Styles, which are actually Member Styles, can be imported into any ACA drawing by using the Insert Interior Trim Tool or Insert Exterior Trim Tool.  If you have already added one of our doors with trim, then you already have at least one of the two trim styles.

To add trim manually to a Door, Window or other Opening, draw a Polyline along the inside frame edge.  I typically do this along the outside of my Doors or Windows.  Doors don't need a sill and Windows should have a separate Polyline for sills because those typically use a different Profile shape.  The direction of the Polyline, clockwise versus counter-clockwise, only matters if the Profile is asymmetrical (such as the example to the right).

After you have drawn the Polyline shape, use the "ColumnConvert" command to convert the Polyline into a Structural Member.  On the "Convert to Column" dialog, do not use the "One Member Per Polyline Segment" option.  The default Structural Member will be a large square but you can change that on the Properties Palette to "Openings_Door_Trim_Inside" or "Openings_Door_Trim_Outside", for example.

If you Zoom into one corner of the new trim, you are likely to find that it requires some Justification modifications and/or Mirroring.  If you draw the Polyline in the right direction for the trim profile, you won't need to change the Justification

Once the trim is located in the proper position relative to your Door or Window, use the Anchor Trim to Door or Window Tool to hook the trim to the Door or Window.  This action will connect the trim to the primary Object so if you Move it, the trim moves as well.  Anchoring does not change the shape and size of the trim so if you change the Door or Window size, you will have to modify the trim manually as well.

When you add one of our customized DWA Objects, such as those for Entry Systems, you should find that they behave much like regular ACA DWA Objects.  However, there is one one major difference and that has to do with our efforts to provide a solution for trim.  DWA's use a Frame component for Jambs, Heads and Sills and since these accept custom Profile shapes,  we created a default "C" shape to produce a trim-like effect.  Unlike the trim we used for our Door Objects, this profile solution is somewhat static and does not automatically adjust to varying Wall Thicknesses.  Once you develop the skills to modify the Profiles and a few DWA Style settings, you should find that the limitations are not that dreadful.

Note:  The DWA's that are meant to hold Arched Top Doors, may insert with the Doors set to a Rise of 0" which will cause the error illustrated to the left.  To fix, simply Select the Door(s) and change the Rise value to something appropriate for the DWA housing the Door(s).  This is a problem with ACA so I experimented with another solution and if you are curious, look under the Barn Doors in the "Experimental" section.  I used a CWU in place of a Door but that has its own problems - good for fast design studies though.

Note:  The "FacetDev" setting can be used to improve the appearance of curved surfaces.  Set to a lower number to improve things like arched top doors.  The default value is 1/2.  I often use 1/10 - 1/100 depending on the size of the file and the detail needed.

If you have reviewed the breakdown of our Door Objects in this guide, you will be familiar with a portion of the complexity involved in how our Door/Window Assemblies have been put together.  The Entry Systems, such as the one illustrated to the right, are fairly complicated but this complexity was necessary in order to provide design flexibility and relative scalar accuracy; a Sidelight Panel, for example, should match the main Door Panels.

Essentially an Entry System is just a Frame with Mullions and Cells that have been assigned a variety of custom Styles such as Doors and Curtain Wall Units.  The Door Styles are duplicates of the ones with trim but lack both the trim and Frames (the Style names always have a prefix of "DWA").  For Sidelights and Transoms we used custom Curtain Wall Units (CWU) because they maintain relative scalar proportions unlike Blocks.

DWA Styles available in this package should be seen as templates for your own creations.  It is fairly easy to take a default DWA configuration and change Doors and Sidelights (for more, see below).

The easiest way to change the Door and/or Sidelight Styles in a default DWA Entry System is to also insert the DWA Entry System that has the configurations you desire.  Once you have the primary DWA Entry System you want and the Door and/or Sidelight Styles, all you have to do is Modify the Infill settings of the primary DWA Style.

Illustrated to the right I show an example of how I have added the "Openings - Entry - Hinged - Double - 2 Sidelight - 3 Transom A - Trim" DWA Style with the default plain solid doors and glazed sidelights.  To give myself access to the Doors and Sidelights I really want, I show that I have added the "Openings - Entry - Hinged - Double - 2 Sidelight - Panel 2x4v - Trim" DWA Style off to the side.  This action imports the Door Style and Sidelight (CWU) Style designed for use in DWA's.

After importing the Styles that I wanted, I show that I have activated the "Door/Window Assembly Style Properties" dialog by Selecting the outer Frame of the Entry System and using the "Edit Door/Window Assembly Style..." context menu option.  To illustrate how Doors, Sidelights and Transoms are set as Cells in the DWA, I show how the Bottom Cell Assignment has another Cell Assignment set to "Doors Solid".  For some of the more complicated Entry Door Systems, I have set a default for "Doors Full Glazed" to provide quick access to glazed doors and you can just use the drop-down list to change the assignment.

However, if you want to use a completely different Door Style, go straight to the Infills category and highlight the "Door", "Doors" or "Doors Solid" (depending upon the type of DWA) Infill and set a different Door Style under the Styles list.

For Sidelights and Transoms, the Style list should automatically go to the "Curtain Wall Unit Styles" section of the Style list.  Be sure to confirm this or you might end up with Doors in your Sidelight or Transom locations.

Note:
Another way to access Door Styles is to type "DoorStyle" and then Open "C:\Program Files\ARCHIdigm\Doors 2009 eParts\Doors eParts - (Imperial).dwg".  All of the Residential Door Styles are located in this file and those with the prefix "DWA" are for use in DWA Entry System Styles.  This action can be repeated for CWU's by typing "CwUnitStyle".

The Door DWA's in this product use Profile Definition Styles to produce a trim-like appearance and the one major drawback to this solution is that the Profiles don't automatically adjust to varying Wall Widths.  In the illustration to the right I show an example of how the default Profile Definition Style, named "Openings_DWA_Trim_ 6_inch_Wall_1x5.5_out_curvy_in", isn't deep enough to match the Wall Object it has been placed in.  Because the trim has been drawn as 1" thick on each side of the Profile, it does protrude out beyond the Wall edges and may never be noticed as a problem.  However, it isn't that difficult to fix and knowing how to fix it will allow you to create more customized trim solutions.

The default Profile can be inserted using the "Profile" command with the "P" option.  You can use the default shape to assist you in creating a new one or you can simply draw a Closed Polyline shape.  Use the diagram to the right as your guide for drawing the Jamb and Head Profile.  In my example to the right I show how my new Profile, green color, relates to the original, blue color.

Once you have a Profile, use the "Profile" command to create or modify a Definition Style.  Highlight the Definition Style name, right-click Select "Set From" on the context menu and then Select your closed Polyline shape.  For best results, use the insertion Base Point illustrated to the right based on a 5 1/2" x 6" rectangle (don't use the default "Centroid" option).  If you use our base point, you won't have to modify any of the default values for the Frames of the DWA unless you define a thicker Jamb (requiring a modification to the X-Offset value).

Once you have a new or modified Profile, Select the DWA Object that you want to apply this Profile to and use the Door/Window Assembly Style Properties dialog to access the Frames category.  Illustrated to the right I show that I have set the Jambs Frame Component to a new Profile named "Openings_DWA_Trim_ 6_inch_Wall_1x5.5_out_curvy_in".  I have also set the Head Frame Component to the same new Profile but will have to create a new Profile for the Sill Frame Component (see below).

Video

Note:
You can also edit a Profile right in place using the "GridAssemblyProfileEdit" command and save it with a unique name - this is a great option - see the video for clarity.

Palette	DOORS - TRIM PROFILES, HARDWARE, ETC
	Insert Keystone for DWA
Keyboard

Under the "DOORS - TRIM PROFILES, HARDWARE, ETC." Palette you will find a Keystone Block designed specifically for use with Door/Window Assembly Styles.  This Block is set to use the "Openings_Door_Trim_Keystone" Member Profile and has been rotated to align properly with the Head Component of our DWA Styles.

The Block has not been attached by default, as with the Door Styles, because attaching Blocks to DWA Styles can cause a Material Assignment bug to occur (see yellow component color, right).  This bug does not appear to occur in ACA 2010.

After inserting the keystone Block, you can delete it.  To attach it to a DWA Style, go to the Model Display Representation and use the Other tab to Add... a Custom Display Component.  On the Custom Display Component dialog, set the Component Type to "Frame".  Use the "Select Element... button to Select the "Head" Component Name.  Check the "Draw Custom Graphics box.  Use the Select Block... button to select the "Openings_dwa_trim_keystone_default" Block.  Set the Insertion Points such that X=Left, Y=Front and Z=Center.  These unusual points are the result of the fact that the top or head component has a horizontal normal; i.e., the Z-axis represents the Length.

One unfortunate cost of all the customization we did to native ACA Objects in this package, is that modifications to things like Material Assignments, is far more difficult.  A complex panel entry door, for example, is comprised of custom Curtain Wall Units, a Door/Window Assembly Style, Mass Elements (for Hardware) and one or two Structural Member Styles (for exterior and interior trim).  On the flip-side, however, you can change the material of all exterior door trim with a couple of clicks.

For some it may appear as a daunting task to understand how all of the Objects in this product have been nested into each other.  If you find that are perplexed and simply cannot find the core or root Object for something you want to change, I recommend that you use a blank ACA file and insert the Door Object into it so you don't have to scroll up and down lists full of information that has nothing to do with the Doors.  We have done our best to use names that match from primary object style all of way down to Curtain Wall Unit panels.  You can also Open any of the Library files to view a matrix of the Object hierarchy - C:\Program Files\ARCHIdigm\Doors 2009 eParts\.

Note about Sidelights:
A few Sidelights are actually true Curtain Wall Unit Styles but most in the "Complex" category are actually DWA's that match the Door Panels.  For each of use, we have created Blocks of these Sidelight DWA's and placed them inside CWU's making all Sidelights CWU's.  Therefore, if you want to change the Material Assignment of a Sidelight, use the "DoorWinAssemblyStyle" command.

Material Assignments for Door Objects

Trim - use "MemberStyle"
Hardware - use "MassElementStyle"
Profile Panels - use "DoorStyle"
Complex Door Panels - use "DoorWinAssemblyStyle"
Complex Door Panel Inserts - use "CwUnitStyle"

Material Assignments for Door/Window Assembly Objects

Trim - use "DoorWinAssemblyStyle"
Mullions - use "DoorWinAssemblyStyle"
Door(s) - see Material Assignment for Door Objects
Sidelights - use "DoorWinAssemblyStyle"
Transoms - use "CwUnitStyle"

Material Assignments for Window Objects

Trim - use "MemberStyle"

In the illustration to the right I show an example of how trim may disappear in 2D Projected Elevations and Sections.  The cause of this is may be due to conflicting or overly complicated trim components.  In some cases, for example, I have experienced this problem due to inadvertently leaving both the true corner and straight corner trim components on.

If you experience this problem, the best solution I have come up with thus far is to simply change the Material for the problematic trim components.  As illustrated, lower right, use the Structural Member Style dialog to access the trim components and then change the Material to one that does not use the "merge" option.

All ePart Objects have been optimized for work using the AutoCAD Architecture 2007 - 2009 "Aec model (imperal - ctb).dwt" and "Aec model (imperal - stb).dwt" default template files.

Illustrated to the right is an example of how the three primary Display Representations, Low, Medium and High Detail, affect ePart Objects.  Most ePart Objects include an AecPolygon Style set to Mask background information.  This mask can be turned off if desired.

Low Detail
The Low Detail Display Representation will affect the Plan and Model Display Representations.  In Plan View linework has been simplified to a little as possible while conveying the basic information of the Object.  In Model View this Detail Display Representation will show Objects in Colors you specify by direct assignment or by Layer; i.e., the Objects are set to "ByBlock".

Medium Detail
The Medium Detail Display Representation will affect the Plan and Model Display Representations.  In Plan View you will see either see the same amount of detail as under Low Detail or High Detail depending on what we considered the better choice.  In Model View Colors are determined by the Material assignment and do not use image maps.

High Detail
The High Detail Display Representation will also affect the Plan and Model Display Representations.  In Plan View all linework is displayed..  In Model View Objects will display Materials by their image map assignment ready for Rendering.

Note:
For Door Styles, there are no AecPolygon Masks.

Most ePart Objects involve a complicated set of regular Blocks that have been assembled into a Multi-View Block.  The complexity varies and may never be something you will have to think about but if you ever have a need to change one of these Objects, you will need to understand how they have been assembled.

The most important thing that you need to understand about MvBlocks is that there is always a duplicate Block of the 3D Model Representation.  By looking under the Model Display Representation on the Multi-View Block Definition Properties dialog, you can find the name of this matching 3D Model Block.  By inserting this Block you can use Refedit to make changes to things like Material Assignments, Height, Width and so forth.

Multi-View Blocks also provide the option to set different Blocks for Top (Plan) Views and these may even be different for Low, Medium and High Detail Display Representations.  A feature of our eParts Objects is the use of custom AecPolygon Styles that act as Masks to hide Objects below.  If these mask blocks produce undesirable results, you can turn off the masking feature - see comments below.

Most ePart Objects include a Masking Block as part of their structure.  These Masking Block have been created by making a Block of an AecPolygon Object set to a custom Style where the "Use Background Mask" feature has been activated.

By typing "AecPolygonStyle" on the command line, you should see a list of Styles with the word "mask" as suffix.  By Editing any of these Styles and unchecking the "Use Background Mask" feature found under the "Other" tab you can remove the masking behavior - see illustration right.

Mask Blocks may produce undesirable results when printing from Model Space due to the Black Background but this is not a problem when printing from Paper Space Layouts.

The "DrawOrder" command can be used to move Mask Blocks up or down in the display stack.

Note:
AecPolygon Styles offer powerful presentation options under the Display Properties tab and you may want to explore things like Hatching all of your Objects or even Filling them with a solid Color.  By default, Fills only display under the Presentation Display Configuration.

Most ePart Objects incorporate Mass Elements as a means of providing a 3D Model that will accept Material Definition Assignments.  In other cases native Object Styles, such as Structural Members, Curtain Walls and Railings have been used whenever feasible and their Material Definition Assignments are managed by the Object Style.

For Mass Elements, however, the Objects have typically been assigned to one custom Mass Element Style and Material Assignments set as Object Display Overrides.  For Objects such as this, you can use the Refedit command to access the Edit Object Display... context menu option to change the Material Definition Override under the "Materials" tab - see illustration to the right.

Keep in mind that an MvBlocks contains one or more regular Blocks so in order to access the actual 3D Model information you need to Insert the 3D Model Block, typically denoted by an "m" suffix.  Once you have inserted the 3D Model Block, you can use the Refedit command to access the contents inside the Block in a way that will ripple back to the MvBlock once you save the changes.

If you Open the eParts source file you will find that most of the 3D Model Blocks have been inserted for you so you can more easily identify them and even change them in this source file if you feel the need.

Note:
For the majority of Mass Element Objects in the Doors package, unique Mass Element Styles have been created.  This will allow for Material Assignment changes on Objects that may be embedded within other Object Styles; such as hardware on a Door Style.  Check your Mass Element Style list.

If you are in a hurry and don't have the patience to change Material Definition Assignments remember that you can always change the Material Definition Style itself.  For example, just because a Material Definition Style is named "Streets.Glossy.Black.Green" does not mean that you can't change the actual Rendering Material to a Glossy Red.

AutoCAD Architecture's Content Catalog offers a Publish tool that assists users with the management of Catalog and drawing file paths.  This tool works well with ACA items such as Object Styles and MvBlocks but ignores regular AutoCAD objects like Blocks.  Our eKits and eParts often include tools set to insert regular AutoCAD Blocks.  These tools have to be fixed manually if you intend to move a catalog to a server or other location.

Note:  Be sure to create your folder structure for the new location prior to using the Publish tool.  I recommend that you use the same folder name for this product as was used for the default installation.

Though this product has been configured for installation under the "C:\Program Files\ARCHIdigm\Doors 2011 eParts" path, you can alter this after you have installed and loaded it in your Content Browser.

From the Content Browser, Select the "Doors 11.0 ePart - by ARCHIdigm" Catalog icon, right-click and Select the "Publish 'Doors 11.0 ePart - by ARCHIdigm'" from the context menu - as illustrated right.  On the Publish Tool Catalog - Step 1 of 4 dialog box, you can use the Move or Copy options to direct this product to a new folder location on your local drive or on a Network Server.  I highly recommend that you create a new folder location that uses the same primary folder name as the one we assigned for the original installation; e.g., "X:\my server\my ACA content\Doors 2011 eParts".

On the Publish Tool Catalog - Step 2 of 4 dialog box, use the ellipses (...) button to specify a new location for the catalog.  On the Publish Tool Catalog - Step 3 of 4 dialog box, use the same location path as the one you previously specified since that is where all of the "tool dependant files" need to go and check both "reference" related checkboxes.  The final step completes the task and provides a report on any errors.

You should now find a new Tool Catalog.  If you used the Copy option the new Catalog will have "Copy" in the title but you can rename it as you see fit.  After testing the tools, you may want to delete the original Catalog and Folder on your local drive.

If you opted to use the "Report Invalid Catalog References" checkbox on the "Publish Tool Catalog - Step 3 of 4" dialog box (see illustration above), you may find errors for items the Publish tool did not Copy.  Make a note of these items and simply Copy them manually.

In the illustration to the right I show that for some reason Render Materials, the image files, are not copied.

Content Catalogs are basically Tool Palettes stored in a single Browser.  The information within the Tool Palettes is stored in XML coded files with the extension ".atc".  Because the files are written in XML code, you can edit these with an XML editor or something as simple as Windows' Notepad.

Illustrated to the right I show an example of how a relocated Content Catalog may appear under a mapped drive labeled as "Z".  If you have more than one of our products, you may want to create a primary folder, like "ARCHIdigm" and then create sub-folders to match the default product folder names.

After using the Copy option under Publish in the Content Browser, all folder and files should have been copied as illustrated to the right.  The primary product folder should only contain one .atc file that serves as the main Catalog file.  This file should not require any modifications.  There should also be one or more folders labeled "Images", "Palettes" and possibly "Categories" (depending on the product).

Within the Palettes folder you should find files with the ".atc" extension and these are the actual Tool Palettes.  These may require editing based upon the information listed below.

Within the Categories folder, if it exists, you should find another sub-folder labeled "Palettes".  The files within this Palette folder may require editing based upon the information listed below.

Doors 11.0 eParts Palette files requiring manual editing:
DOORS - COMMERCIAL_...atc
DOORS - TRIM PROFILES, HARDWARE, ETC...atc

Note:  Be sure to do this work with AutoCAD Architecture shut down.  If it is running it can overwrite any editing you may have done.

Based on the ".atc" files listed above, find each in your new location and use Notepad to edit them.  In each file use the Replace command found under the Edit pull-down menu and input the following information for the "Find what" field:  "C:\Program Files\ARCHIdigm\Doors 2011 eParts".

For the "Replace with" field, specify your new path location.  In the example listed above, my Replace with field would look like this: "Z:\ARCHIdigm\Doors 2011 eParts"

To confirm that your editing was successful, go to the new Doors 11.0 eParts Catalog and open the "DOORS - TRIM PROFILES, HARDWARE, ETC." Palette.  If you can insert any of the Trim Objects and Door Knobs, your editing worked out perfectly.  If you receive an error, something must have gone wrong with the Find and Replace work.  At this point you may need to contact someone at ARCHIdigm - see e-mail address below.

Let us know what you would like to see improved.

kits@archidigm.com
